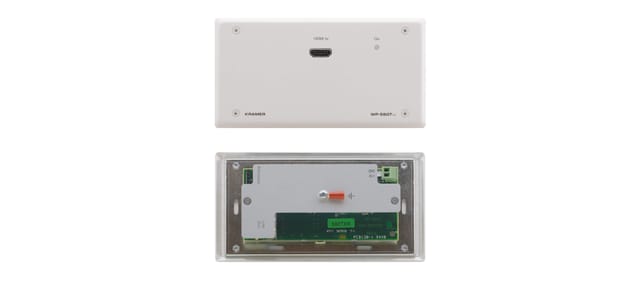

62ff2860553482b7cba2537d Kramer WP-580Txr https://www.originservices.in/s/5ee6a1afa31c3e1f1f5f56d0/62ff2810693be705d9db953c/wp-580txr.jpg

WP−580Txr is an extended range, HDBaseT wall plate transmitter for 4K@60Hz (4:2:0) HDMI signals over twisted pair. WP−580Txr inputs HDMI signals and converts them into an HDBaseT twisted pair signal that it transmits to a WP−580Rxr receiver. The WP–580Txr(D) model is supplied with a Midway Size 2 gang DECORA® design frame.

  •  Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel) in normal mode; 4.95Gbps (1.65Gbps per graphic channel) in ultra mode.
  •  HDTV Compatible.
  •  HDCP 2.2 Compliance.
  •  HDBaseT™ Technology.
  •  HDMI Support — Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS–HD.
  •  3D Pass–Through.
  •  EDID PassThru — Passes EDID signals between the source and display.
  •  2K & 4K Support in Normal Mode.
  •  System Range — Up to 130m (430ft) normal mode; up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using recommended Kramer cables (see CABLES).
  •  Indicators — Status LEDs for input, output, link and power.
 SKU-UZLCFJH6PCV
in stock INR
Kramer
1 1

Kramer WP-580Txr

WP−580Txr is an extended range, HDBaseT wall plate transmitter for 4K@60Hz (4:2:0) HDMI signals over twisted pair. WP−580Txr inputs HDMI signals and converts them into an HDBaseT twisted pair signal that it transmits to a WP−580Rxr receiver. The WP–580Txr(D) model is supplied with a Midway Size 2 gang DECORA® design frame.

  •  Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel) in normal mode; 4.95Gbps (1.65Gbps per graphic channel) in ultra mode.
  •  HDTV Compatible.
  •  HDCP 2.2 Compliance.
  •  HDBaseT™ Technology.
  •  HDMI Support — Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS–HD.
  •  3D Pass–Through.
  •  EDID PassThru — Passes EDID signals between the source and display.
  •  2K & 4K Support in Normal Mode.
  •  System Range — Up to 130m (430ft) normal mode; up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using recommended Kramer cables (see CABLES).
  •  Indicators — Status LEDs for input, output, link and power.
  • 4K60 4:2:0 HDMI Wall–Plate Transmitter over Extended–Reach HDBaseT
  • Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel)
  • 2K & 4K Support
Brand Kramer
Kramer WP-580Txr
