Kramer PT-571HDCP
Kramer PT-571HDCP

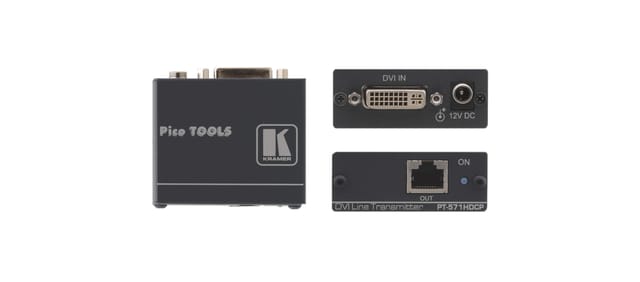

The PT−571HDCP is a DGKat™ twisted−pair transmitter for DVI signals. The PT−571HDCP converts the DVI to twisted pair signal and the PT−572HDCP+ converts the twisted pair signal back to a DVI signal.
The PT−571HDCP−MD is certified for medical applications.
- Max. Data Rate — 4.95Gbps (1.65Gbps per graphic channel); WUXGA, 1920x1080p.
- Certified for Medical Applications — According to IEC 60601–1–2 (Electromagnetic Compatibility), (PT–571HDCP–MD).
- HDTV Compatible.
- DGKat™ Signal Integration — Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables.
- System Range — Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables. Note: Transmission range depends on the signal resolution, graphics card and display used. If using third–party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly.\
- EDID PassThru — Passes EDID signals between the source and display.
- Power Connect™ System — A single connection to the transmitter powers both units when the devices are within 150ft (50m) of each other.
- Ultra–Compact PicoTOOLS™ — 4 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.
| Brand | Kramer |
