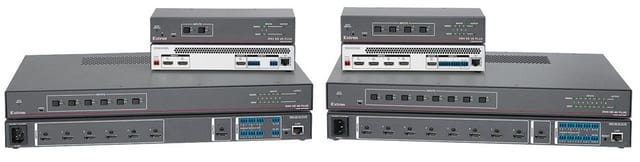

Extron SW HD 4K PLUS Series

Extron SW HD 4K PLUS Series of two, four, six, and eight-input HDMI switchers support 4K/60 with 4:4:4 color sampling. They are designed for video signal switching between multiple HDMI sources to a single display. The switchers are HDCP 2.3 compliant, and support data rates up to 18 Gbps, HDR, 12-bit Deep Color, 3D, and HD lossless audio formats. The SW HD 4K PLUS Series is easy to operate using front panel controls or auto-switching. Ethernet, RS-232, and contact closure ports provide ample options for integration with any control system. All models feature EDID Minder , which maintains continuous EDID communication with connected devices and ensures that the HDMI sources power up and maintain video output. The switchers provide automatic input cable equalization up to 25 feet (7.6 meters) on Extron HDMI Pro Series cable.

Supports computer and video resolutions up to 4K/60 @ 4:4:4
Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12?bit, 3D, and HD lossless audio formats
Ethernet monitoring and control

Frame rate	24, 25, 30, 50, or 60 fps
Video output	1 single link HDMI (or DVI-D*)
Chroma sampling	4:4:4, 4:2:2, or 4:2:0
Colour bit depth	8, 10, or 12 bits per color
Signal type	HDMI 2.0b, HDCP 2.3
Max. video data rate	18 Gbps (6 Gbps per color)
Resolution range	Up to 1920 x 1200 or 1080p @ 60 Hz, 12 bit color 4K (4096 x 2160) @ 60 Hz with 4:4:4 color space, 8 bit color (Max for HDMI) UHD (3840 x 2160) @ 60 Hz with 4:4:4 color space, 8 bit color
Video input	2, 4, 6, or 8 (depending on model) single link HDMI (or DVI-D*)
Country of origin	USA
Brand	Extron
