Extron Long Distance DTP Receiver for DVI

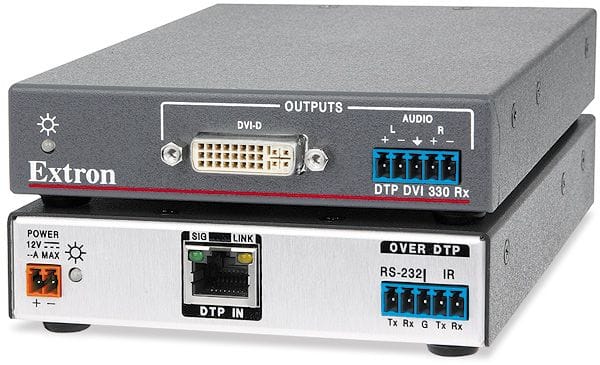

Extron DTP DVI 4K 330 Rx is a long distance, digital twisted pair receiver that works with Extron DTP 330-enabled products to send DVI-D video, audio, and bidirectional RS?232 and IR signals up to 330 feet (100 meters) over a shielded CATx cable. It provides an effective means for extending single link DVI?D or HDMI signals. In addition, the DTP DVI 4K 330 Rx accepts analog stereo audio signals from a DTP 330-enabled product over the same shielded twisted pair cable. It supports video signals at resolutions up to 4K. The compact enclosure size and remote power capability make the DTP DVI 4K 330 Rx ideal for discreet placement in lecterns, behind flat-panel displays, or wherever needed to meet application requirements.
- Receives single link DVI-D plus control and analog audio up to 330 feet (100 meters) over a shielded CATx cable
- Supports computer and video resolutions up to 4K
- Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance
| Frame rate | 24, 25, 30, 50, or 60 fps |
| Video output | 1 single link DVI-D (or HDMI*) |
| Chroma sampling | 4:4:4, 4:2:2, or 4:2:0 |
| Colour bit depth | 8 bits per color |
| Signal type | HDMI 1.4, HDCP 2.3 |
| Max. video data rate | 10.2 Gbps (3.4 Gbps per color) |
| Resolution range | Up to 2560x1600* @ 60 Hz or 4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz, 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling |
| Connector type | 1 female RJ-45 per unit |
| Signal transmission distance | 1080p @ 60 Hz - Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable, 2560x1600 @ 60 Hz - Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable 4K/UHD @ 30Hz and 60 Hz - Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable |
| Country of origin | USA |
| Brand | Extron |
