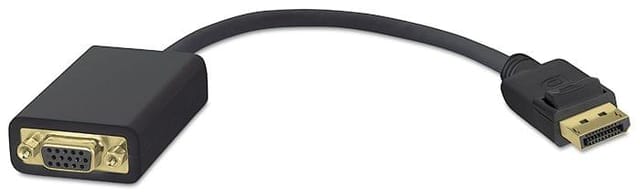

Extron DisplayPort Male to VGA Female Active Adapter Cable
Extron DPM-VGAF is an active, one-way adapter that enables transmission of digital signals from dual-mode DisplayPort sources to VGA displays. It supports the DisplayPort Version 1.1a specification and resolutions to 1920x1200 @ 60Hz and 1080/p/60. For ease of installation, the DPM-VGAF features an attached, 6" (15 cm) pigtail and is ideal for use when integrating DisplayPort-equipped laptop computers and other devices with legacy, high resolution analog projectors or flat-panel displays.
- Provides connectivity between dual-mode DisplayPort equipped sources and VGA displays
- Passes EDID information from VGA display to the source
- Supports signals up to 1920x1200 @ 60 Hz and 1080p/60
| Frame rate | 60 fps |
| Colour bit depth | 24 bits - 8 bits per colour |
| Signal type | EDID |
| Resolution range | 1920x1200 @ 60 Hz and 1080p/60 |
| Connector type | 1 DisplayPort connector to 1 Female VGA |
| Available lengths | 6" (15 cm) |
| Country of Origin | USA |
| Brand | Extron |
