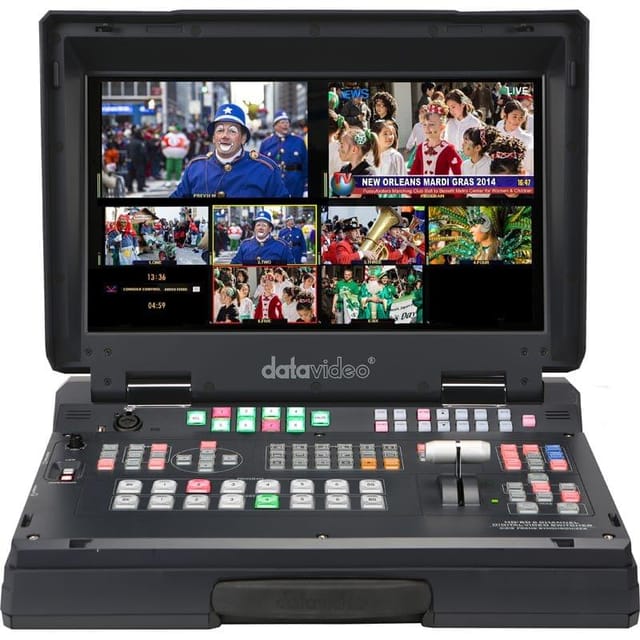

DATAVIDEO HS-2200
HD 6-Channel Portable Mobile Cast Video Studio The HS-2200 comes with 6 configurable SDI video outputs. Ideal for live production venues, religious worship, meetings or conference purposes. It's perfect for sending video to multiple IMAG screens or display monitors. With 6 HDMI and SDI inputs, the HS-2200 has convenient support for most cameras and video input devices, like computers. Coupled with 6 outputs, the HS-2200 is an affordable choice for supporting large productions. Built in 8 Channel Intercom/Talkback system (4 x belt packs supplied) Built-in Monitor Display. 17.3'' HD TFT LED backlit monior with resolution 1600x900 pix.
Coming Soon!
| Built-in Monitor Display | 17.3 inch HD TFT LED backlit, 1600x900 pix |
| Computer Graphic Interface | 2 via HDMI |
| Video Standard | HD & SD |
| Video Input | 6x HD-SDI, 2x HDMI (on CH5 & 6) |
| Video Output | 5x SDI Outputs assignable: AUX 1-4, PGM, PVW, PGM Clean or multiview 1x HDMI multi-view |
| Embedded Audio Support | Input up to 16 channels, Output 4 channels |
| A+V Switching | Yes |
| Logo Insertion | 2 (or 1 logo + 1 clock) |
| Input Routable / Crosspoint | All 6, repeatable |
| Embedded Audio Support Input | Input up to 16 channels, Output 4 channels |
| DSK | 1, support Lumakey & Linear key (Key / Fill) |
| Picture in Picture | 2 |
| Built-in Intercom & Tally | 8 channels (4 belt-packs incl.) |
| Country of Origin | Taiwan |
| Brand | Datavideo |
